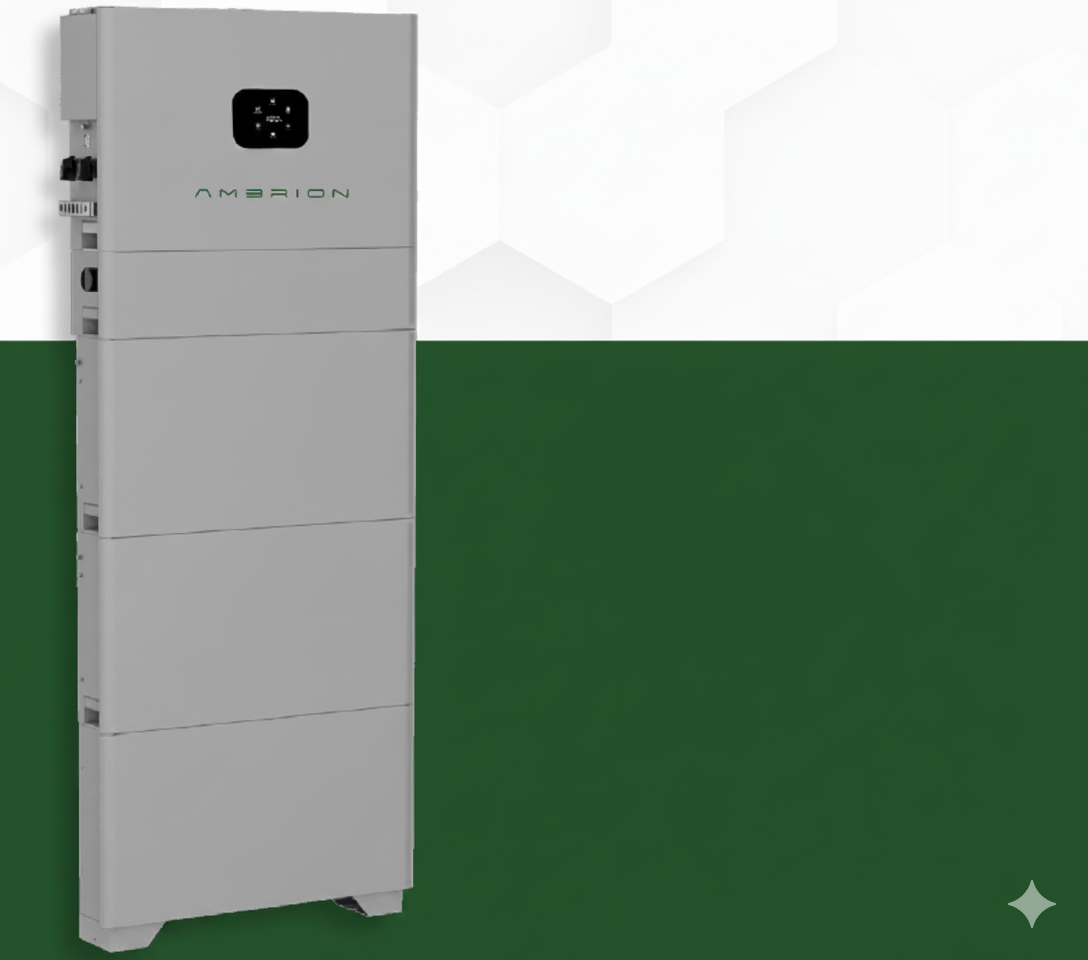

The Eclipse HS3
Image: Ambrion
Australian company Ambrion has launched a new range of all-in-one storage solutions.
The Eclipse HS3 range includes single-phase AC products of 5 kW and 6 kW, as well as three-phase models of 10 kW and 12 kW.
“It is a 6-in-1 plug-and-play interconnected modular design with an ultra-slim 1.7cm profile and enhanced aesthetics,” the company said in a statement. “It supports additional functionality for bi-directional charging of electric vehicles (EV) and heating, ventilation and air conditioning (HVAC) systems via modular components.”
The 5 kW model supports up to 10 kW of PV input, while the 6 kW version can handle up to 12 kW. Both systems feature two MPPTs and are coupled to lithium iron phosphate (LiFePO₄) battery modules of approximately 5 kWh each. The system supports 2 to 8 battery modules, providing a total usable storage capacity of 10-40 kWh. Both models achieve a maximum efficiency of 97.6%.
The three-phase 10 kW and 12 kW models each support up to 15 kWp of PV input and are equipped with two MPPTs. Both systems are linked to LiFePO₄ battery modules of approximately 5 kWh each. The systems support 2 to 8 battery modules, giving a total usable storage capacity of 20-40 kWh. The three-phase models achieve a maximum efficiency of up to 98%.
“The systems are IP65 rated for outdoor use, with a safe operating range of -30C to 50C, supported by self-heating for cold starts and thermal boost technology, for peace of mind during extreme weather,” the company said. “They have ultimate fire protection, with thermal activation of 185 C per module and a 3-second firmware shutdown.”
