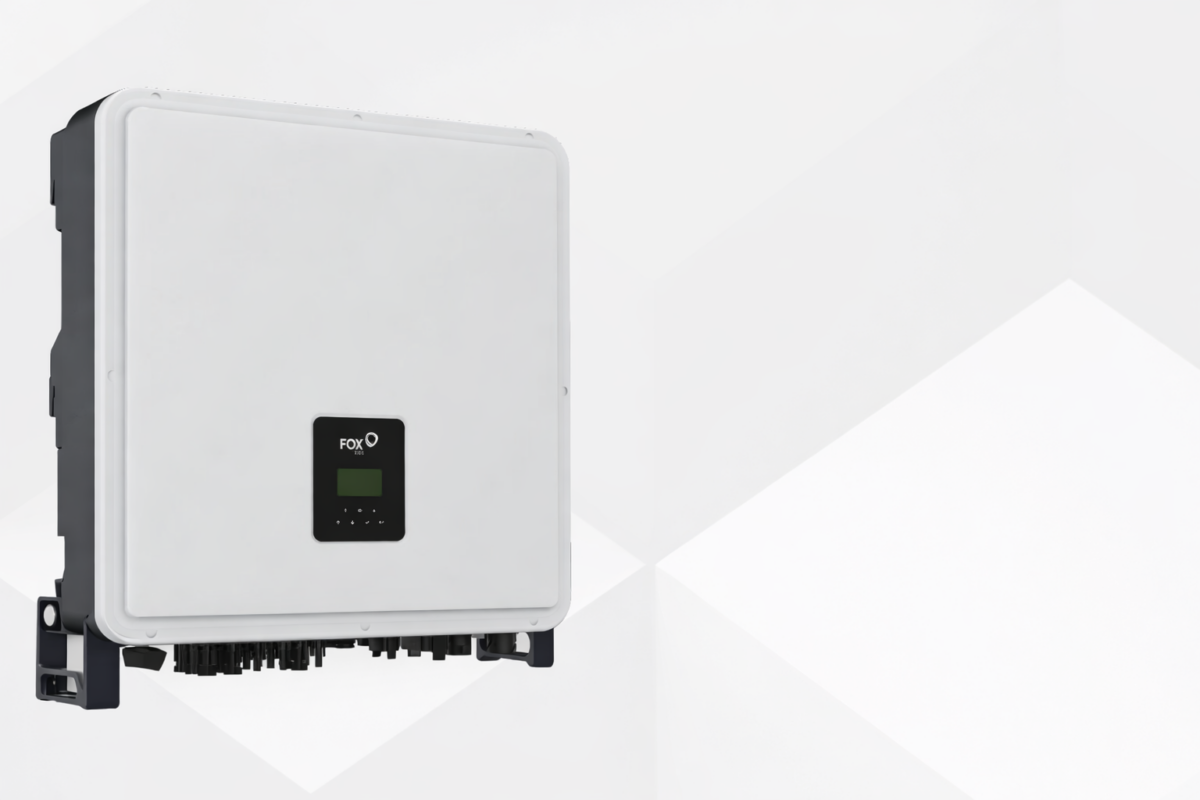

The product line, called H3-Pro, consists of five models with PV input powers ranging from 30 kW to 50 kW and AC output powers from 15 kW to 30 kW.
“With 200% PV oversizing, dual independent battery inputs and three MPPTs, it delivers excellent solar energy generation and storage efficiency,” the company said. “For larger installations, the H3-Pro can support up to 144 kWh by combining two of our CQ6 battery stacks, each consisting of 12 modules, making it suitable for commercial applications.”
On the DC side, all models have a maximum input voltage of 1,000 V and an MPPT voltage range of 150 V to 850 V. On the AC side, the maximum output current per phase varies from 25 A to 50 A, depending on the model.
The series offers a maximum efficiency between 99.1% and 99.2%, with a European efficiency ranging from 96.3% to 96.6%.
According to the manufacturer, the inverters have an IP65 protection rating, which allows installation both indoors and outdoors. They feature built-in Wi-Fi and LAN connectivity, an integrated display and a single current transformer (CT) meter for system configuration and monitoring. The devices are Virtual Power Plant (VPP) ready, compatible with major platforms and provide frequency shifting capabilities for off-grid applications.
All H3-Pro models measure 600mm x 560mm x 225mm and weigh 52.5kg. The operating temperature range is from -25 C to 60 C. The inverters can operate at relative humidity levels from 0% to 95% and at altitudes up to 4,000 meters.
Depending on the model, the noise level is below 45 dB or 55 dB.
