The system, called RISE 261H-XH, is available in 50 kW, 63 kW, 85 kW and 125 kW output configurations. It supports 100% three-phase unbalanced load in backup mode and provides 160% rated AC overload capacity for 10 seconds.
From ESS news

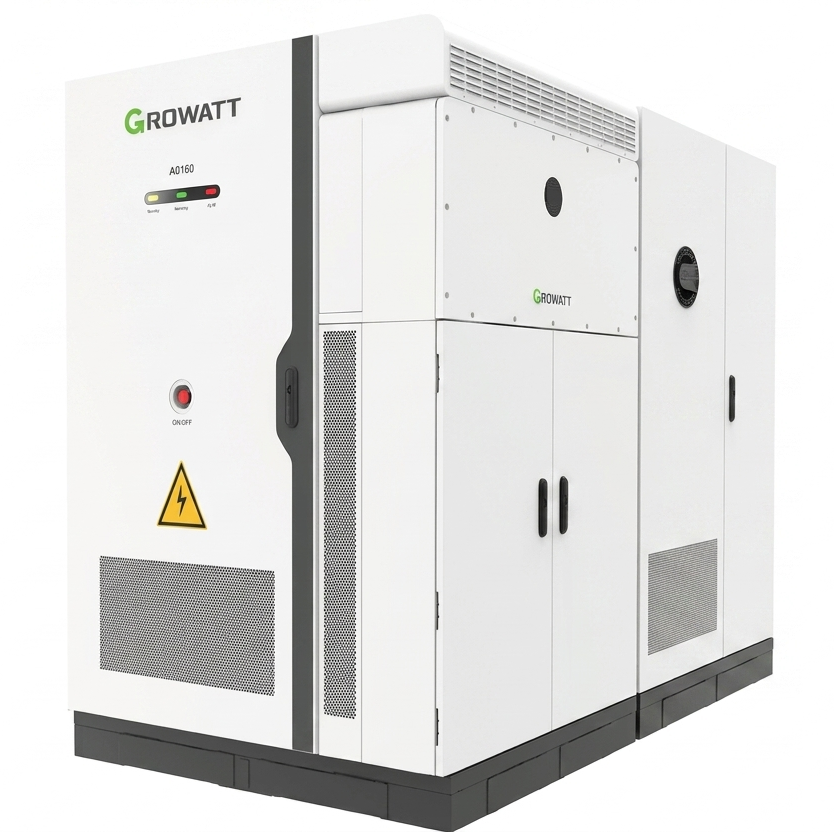

Chinese inverter and battery manufacturer Growatt has announced a new all-in-one hybrid energy storage system designed for commercial and industrial (C&I) and large-scale energy applications.
The system, called RISE 261H-XH, is available in 50 kW, 63 kW, 85 kW and 125 kW configurations, all based on the same 261 kWh energy storage platform. For larger projects it can be scaled up to 10 units, for a total capacity of up to 1.25 MW / 2.61 MWh.
“The core of the system is a 261 kWh lithium iron phosphate (LFP) battery, based on 3.2 V / 314 Ah cells, with a 95% depth of discharge,” the company said in a statement. “To support stable operation, the battery uses liquid cooling, while the power conversion system (PCS) uses smart air cooling. The system is also designed to keep the cell temperature difference within 3°C, improving thermal consistency in all operating environments.”
The different models in the series have a PV input power of 100 kW, 126 kW, 170 kW and 250 kW respectively. They support 10 MPPT trackers, a DC/AC ratio of 2.0 and fast on-grid/off-grid switching within 10 ms. The systems also support 100% three-phase unbalanced load in backup mode and provide 160% rated AC overload capacity for 10 seconds.
“The system also supports generator/AC-coupled input and smart load connection, making it suitable for applications such as self-consumption, backup power, peak shaving, time-of-use management, grid support, diesel hybrid systems and AC-coupled energy storage,” the company said.
All RISE 261H-XH systems measure 1,400 mm x 2,150 mm x 1,300 mm and weigh 2.6 tons. Operating temperatures range from -25 C to 55 C, and the systems can operate in relative humidity up to 95% and at altitudes up to 3,000 meters. They have a protection degree of IP55.
