An International Researc team has included an assembled Monolaag in Perovskite Indoor PV to improve its stability and sustainability. Cells, mini modules and a prototype device from an electronic price tag, the new structure was tested. It turned out to show a lifetime that approached 6000 hours.
A group of researchers led by Chinese Soochow University has developed a reliable Perovskite Indoor PV (PIPV) for self-powered devices. The team has developed a small test cell on which they have conducted experiments, together with a mini module and an electronic price tag driven by the technology.
“The rise of the Internet of Things (IoT) has stimulated rapid growth in the demand for self-powered devices, stimulating the progress of very compatible indoor photovoltaics (instead of),” the group said in a press release. “PIPVs have attracted considerable attention because of their adjustable band gap and a high open circuit voltage. Long -term stability, however, remains the most critical barrier for the commercialization of PIPV and is currently under intense market research.”
To tackle the stability challenges, the group has included a hybrid-in-illuminated self-assembled Monolaag (SAM) in the structure of the device. That monolaag contained a mixture of [ 4-(7H- dibenzo[c,g]Carbazol-7-yl) Buty L]phosphonic acid (4padcb), with [4-(7H-dibenzo [c,g]Carbazol-7-yl) Ethyl]phosphonic acid (2padcb). The 2padCB: 4padCB mixture had a ratio of 1: 1. With varying carbon chain lengths, the effective surface coverage on indium tinoxide (ITO) increased and improved the binding energy between the SAM and ITO.
The manufactured cell and mini module had ITO as the front selectrode, 2padcb: 4padcb as a Sam coating for the ITO, perovskite as the light-absorbing layer, PCBM as an electron transport layer, Bathocuproine (BCP) as a buffer and silver (AG) as the back. In general it had a cell structure of ITO/SAM/PEROVSKITE/PCBM/BCP/AG.
“The glass substrates coated by the ITO underwent a cleansing protocol with detergent and 15 minutes of rinses in theianized water, acetone and ethanol. After being dried in an oven for more than 3 hours, they were treated for 20 minutes with ultraviolet ozone,” the group explained. “The SAM layer was dropped off by spincoating at 3000 rpm for 40 seconds and then faded for 10 minutes at 100 ° C. Perovskiet films were manufactured by a two-step spin coating process, performed at 1000 RPM for 10 seconds and 6000 RPM for 30 seconds.”
The mini module that was further developed with the help of the same processes had a size of 5 cm x 5 cm. To facilitate the commercialization of PIPVs, the academics developed a first prototype of a self -driven electronic price tag that used a yellow LED. The prototype, the cell and the mini model were all tested under interior lighting, ranging from 200 lux to 2,000 lux.

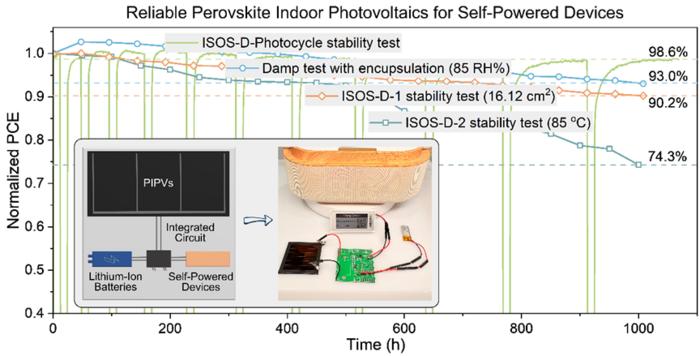

“The optimized devices achieved a record Indoor Power Conversion -Efficiency (PCE) of 42.01% under 1,000 Lux lighting,” the scientists concluded. “Moreover, during accelerated aging stability tests that simulate daily-periodic light intensity fluctuations from 2,000 lux to dark, the target devices showed a projected T90 Lifetime that approached 6,000 hours. Ultimately, the PIPV module was successfully demonstrated to continu and reliable a circuit.”
The cell was presented in “Reliable Perovskite Indoor Fotovoltaïschens for Self-driven devicesPublished in the National Science Review. The team also consisted of scientists from Turkish Marmara University.
