A Chinese research group claims to have achieved a power conversion efficiency of more than 50% in an N-type solar cell with one junction by inhibiting light conversion to heat at extremely low temperatures. The result was achieved at temperatures of 30-50 Kelvin, which are a few dozen degrees above absolute zero.
Researchers from the University of Delaware in the United States and Taizhou University in China claim to have achieved a record power conversion – efficiency of “50% – 60%” in a silicon solar cell by inhibiting the thermal oscillations of the grilles at extremely low temperatures.
“For our experiment, We used pieces of commercial PV cells, ‘the main author of the research, Bingqing wei, told PV -Magazine. ‘We had To place the cells of 4 mm x 8 mm in a room with a low temperature that is not large enough to hold a whole cell. “
If confirmed, this result may be the “first experimental infringement” of the Upper theoretical limit of energy absorption efficiency for silicon solar cells, called the Shockley-Quisser limit, which is approximately 33.7%.
‘So far, we have confirmed the results internally, “Wei said:” The tests were performed at extremely low temperatures, so we cannot find a third party that could do the experiments and certify the results. “
The scientists explained that the record efficiency was achieved at very low temperatures of 30-50 Kelvin (K), which are a few dozen degrees above absolute zero. They also noted that conventional solar cells below 150 K collapse as energy carriers get caught.
“If the temperature is less than 150-200 K, the efficiency will decrease with falling temperature as a result of the effects linked to carriers. The hypothesis that increasing efficiency by cooling is no longer applicable at low temperatures, the law of thermodynamics seems to convert,” they have also emphasized this freezing effect, “they emphasized this in a strong effect,” they also stressed the effects of the effects in a striking effect, “they also stressed the effects of the effects of the effects,” they also stressed the effects of the effects of the effects of the effects, “they are stressed in a strong effect in a strong effect in a strong effect in a strong effect in a strong effect,” they are striking in a strong effect in a strong effect in a strong effect in a strong effect, “the effect of the freezing effect.” Reduction and an almost zero efficiency at extremely low temperature.
“The traditional theory can be confronted for challenges when applied to solar cells that work at extremely low temperatures,” they added.
Under 150 K, free cargo carriers collapse into solar cells, but photo barriers do not remain influenced by the freezing effect and can even survive at zero K as photons available. The photo barrier density of the lower cell layer is determined by the light intensity that it reaches, which means that the freezing-out effect can be overcome by improving the light penetration depth and reducing the cell thickness.
Their strategy consisted of improving the light penetration depth to effectively limit the freezing of the bearers, while the thermal losses were reduced, which reportedly extended the operational temperature range of silicon cells to 10 K. They used homochromatic lasers with different photo energy to enlarge the dragermobility.

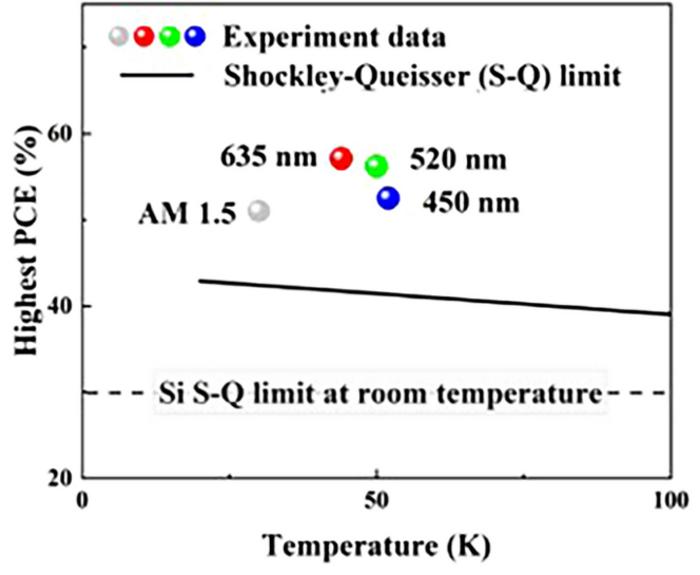

Under standard lighting conditions and at a temperature of 30 K, the cell achieved an efficiency of approximately 51%, the scientists said that the 27.3% world record efficiency was achieved at room temperature by the Chinese manufacturer Longi for a heterojuncture Back contact (BC) solar item and is.
The experimental results were presented in the study “Exchange the efficiency limit of Shockley -Questa in photovoltaic cells“Published in Nano-Mirco Letters. “This work rewrites the PV-Playbook with a low temperature and changes once shared freezing-out regime in an ultra-efficiency window-which to more than 50% devices with one junction for extreme environments energy harvesting.”
I am looking forward, the research group is planning to develop 4 cm2 “Flight-style” cells that can be used for space applications and to be eligible for NASA Commercial Lunar Payload Services.
